SCHOTT adaptiQ® sterile vials

Logo by SCHOTT Pharma

adaptiQ® sterile ready-to-use vials

true

SCHOTT adaptiQ® vials are high-quality, pyrogen-free, sterile and ready-to-use (RTU) injection vials for the pharmaceutical and biotechnology industry to shorten time-to-market and increase flexibility. The SCHOTT adaptiQ® RTU vials were developed for highly sensitive biological drugs or small and medium batch sizes, e.g. in oncology. The SCHOTT adaptiQ® RTU injection vial portfolio is part of SCHOTT iQ® - the global RTU standard.

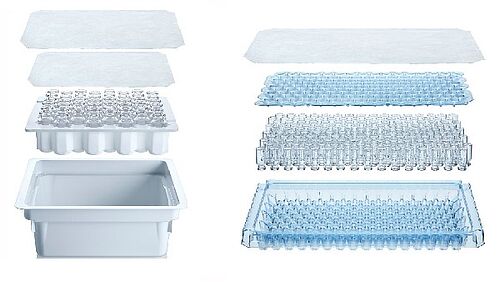

The vials are supplied in an EtO-sterilized tub and nest or tray packaging configuration that complies with the relevant ISO 11040-7 and 21882 standards. The design of SCHOTT adaptiQ® vials ensures that there is no glass-to-glass contact during transportation, storage and the entire filling and finishing process, reducing the risk of glass breakage while maintaining high quality. The SCHOTT adaptiQ® portfolio aims to improve patient safety while reducing the total cost of ownership.

SCHOTT adaptiQ® vials have been developed in collaboration with leading machine suppliers and can be processed on a variety of existing and new filling lines. This allows the vials to remain in the nest during most process steps, including freeze-drying.

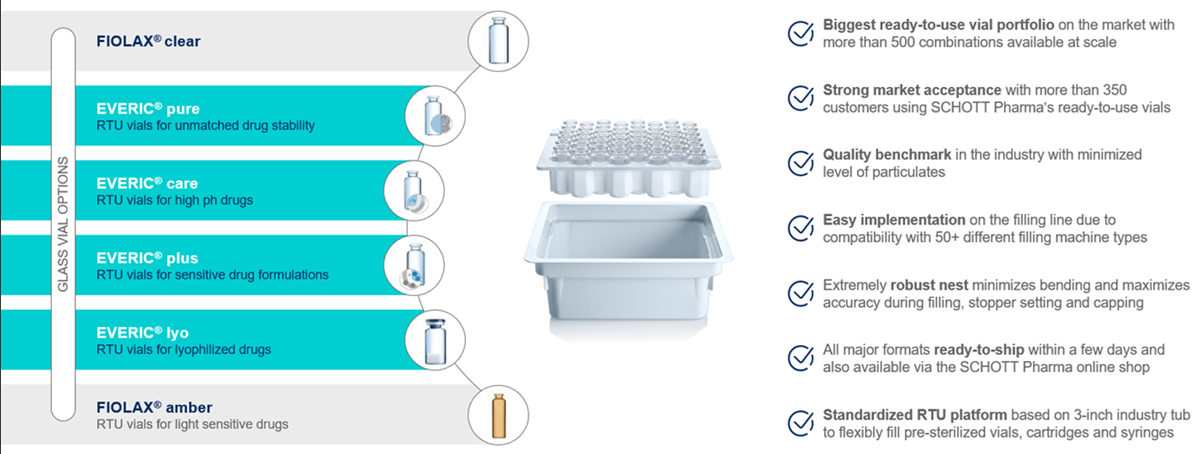

SCHOTT adaptiQ® vials are available in Fiolax® clear or amber, Type 1 plus®, EVERIC® pure | care | freeze | strong & smooth or TopLyo® in clip nest, cup nest or tray packaging configuration.



DIN/ISO Nominal volume Rim full Dimensions (D x H) Neck opening Ø Nest Box Pallet
2R 2 ml 4 ml 16 x 35 mm 13 mm 100 pcs. 1,500 pcs. 22,500 pcs.
4R 4 ml 6 ml 16 x 45 mm 13 mm 100 pcs. 1,500 pcs. 22,500 pcs.
6R 6 ml 10 ml 22 x 40 mm 20 mm 48 pcs. 720 pcs. 10,800 pcs.
8R 8 ml 11.5 ml 22 x 45 mm 20 mm 48 pcs. 720 pcs. 10,800 pcs.
10R 10 ml 13.5 ml 24 x 45 mm 20 mm 48 pcs. 720 pcs. 10,800 pcs.
15R 15 ml 19 ml 24 x 60 mm 20 mm 48 pcs. 720 pcs. 10,800 pcs.
20R 20 ml 26 ml 30 x 55 mm 20 mm 24 pcs. 360 pcs. 5,400 pcs.
25R 25 ml 32.5 ml 30 x 65 mm 20 mm 24 pcs. 360 pcs. 5,400 pcs.
30R 30 ml 37.5 ml 30 x 75 mm 20 mm 24 pcs. 360 pcs. 5,400 pcs.
50 R 50 ml 62.0 ml 40 x 73 mm 20 mm 16 pcs. 240 pcs. 3,600 pcs.

Specifications / sample certificates of the RTU injection vials or other helpful documentation can be supplied on request.

DIN/ISO Nominal volume Rim full Dimensions (D x H) Neck opening Ø Nest Box Pallet
2R 2 ml 4 ml 16 x 35 mm 13 mm 100 pcs. 1,500 pcs. 22,500 pcs.
4R 4 ml 6 ml 16 x 45 mm 13 mm 100 pcs. 1,500 pcs. 22,500 pcs.
6R 6 ml 10 ml 22 x 40 mm 20 mm 48 pcs. 720 pcs. 10,800 pcs.
8R 8 ml 11.5 ml 22 x 45 mm 20 mm 48 pcs. 720 pcs. 10,800 pcs.
10R 10 ml 13.5 ml 24 x 45 mm 20 mm 48 pcs. 720 pcs. 10,800 pcs.
15R 15 ml 19 ml 24 x 60 mm 20 mm 48 pcs. 720 pcs. 10,800 pcs.
20R 20 ml 26 ml 30 x 55 mm 20 mm 25 pcs. 375 pcs. 5,625 pcs.
25R 25 ml 32.5 ml 30 x 65 mm 20 mm 25 pcs. 375 pcs. 5,625 pcs.
30R 30 ml 37.5 ml 30 x 75 mm 20 mm 25 pcs. 375 pcs. 5,625 pcs.

Specifications / sample certificates of the RTU injection vials or other helpful documentation can be supplied on request.

DIN/ISO Nominal volume Rim full Dimensions (D x H) Neck finish Ø Tray Box Pallet
2R 2 ml 4 ml 16 x 35 mm 13 mm 160 pcs. 1,600 pcs. 48,000 pcs.
4R 4 ml 6 ml 16 x 45 mm 13 mm 160 pcs. 1,280 pcs. 38,400 pcs.
6R 6 ml 10 ml 22 x 40 mm 20 mm 88 pcs. 880 pcs. 26,400 pcs.
8R 8 ml 11.5 ml 22 x 45 mm 20 mm 88 pcs. 704 pcs. 21,120 pcs.
10R 10 ml 13.5 ml 24 x 45 mm 20 mm 80 pcs. 640 pcs. 19,200 pcs.
15R 15 ml 19 ml 24 x 60 mm 20 mm 80 pcs. 640 pcs. 16,000 pcs.
20R 20 ml 26 ml 30 x 55 mm 20 mm 48 pcs. 384 pcs. 9,600 pcs.
25R 25 ml 32.5 ml 30 x 65 mm 20 mm 48 pcs. 288 pcs. 8,640 pcs.
30R 30 ml 37.5 ml 30 x 75 mm 20 mm 48 pcs. 288 pcs. 7,200 pcs.
50R 50 ml 62.0 ml 40 x 73 mm 20 mm 28 pcs. 168 pcs. 5,040 pcs.

Specifications / sample certificates of the RTU injection vials or other helpful documentation can be supplied on request.
